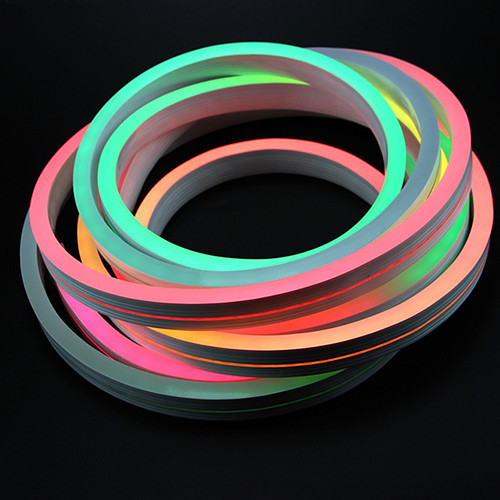

Dream Color RGB Flex Tube LED neon flex tube with eco PVC material 120 LEDs per meter and minimum bending diameter of 8cm

Dream Color RGB Flex Tube LED neon flex tube with eco PVC material 120 LEDs per meter and minimum bending diameter of 8cm

Double side luminescence Led Neon Flex Tube

Product Positioning

1. High-Density SMD2835 Light Source (120 LEDs/m)

• SMD2835 is smaller and more efficient than SMD5050 (105–120 lm/W vs. 5050’s ~100 lm/W), so 120 LEDs/m delivers ample brightness for storefront/guidance use without excess power draw
• SDCM <3 color tolerance​ (Standard Deviation of Color Matching) — ensures zero perceptible color shift between batches, even for 50+ location retail rollouts years apart
• Ra >80 (white variants) for comfortable, retail-grade warm/cool white; RGB variants use 1R1G1B per 2835 package for clean color mixing without fringing
• 12V/24V DC low-voltage drive, surface temperature <30°C, 90% energy savings vs. traditional glass neon

2. Dual Protection for LEDs & Components – No “Unit Failure” Cascade

• Circuit-level redundancy: 12V units are grouped in 3-LED parallel branches, 24V in 6-LED parallel branches. If a single LED degrades, the rest of its branch stays lit, and the failure doesn’t cascade to the rest of the strip.
• Component-level sealing: Every SMD solder joint is secondary-coated with clear silicone before PVC jacketing, preventing moisture/oxidation from reaching the circuit even if the outer jacket is nicked during install. Combined with injection-molded nylon end caps + potted sealant at strip terminations, this keeps the internal circuit isolated from the environment.

3. First-Class Eco-Friendly UV-Resistant PVC Jacket

• RoHS/REACH certified: Zero lead, mercury, phthalates, or other restricted substances — safe for indoor public spaces (schools, food retail, healthcare) and light outdoor use
• Imported UV stabilizer additive: Resists photodegradation for 18–24 months in covered outdoor environments (storefront canopies, sign boxes, walkway trellises) without yellowing, brittleness, or surface chalking
• Upgrade note: For full outdoor exposure (direct rain, coastal salt spray, >2 years UV), we recommend our silicone co-extruded series — this PVC line is optimized for cost-conscious semi-outdoor/indoor-first projects.

4. Double Lighting Design – High Brightness, Uniform Glow, Zero Dots/Dark Spots

• Layer 1 (direct emission): 120 LEDs/m high-density layout minimizes gaps between light sources, so even close-up inspection doesn’t show obvious LED points
• Layer 2 (diffused emission): The PVC jacket is extruded into a semi-circular dome profile with micro-diffuser texture on the inner wall, which scatters the direct LED light into 120° continuous, linear glow — no dark spots between cut points or LED clusters, even for fine brand typography (e.g., café “OPEN” scripts, convenience store logo outlines)
• Result: Crisp, uniform brand glow that reads clearly from 20m+ away, with no “patchy” sections that cheapen the brand image.

5. Tool-Free Install, Cuttable & Reconnectable

• Marked cut points: Black cut lines every 2.5cm (12V) / 5cm (24V) along the strip — cut only at these points to avoid damaging parallel circuits
• IP65 reconnect accessories included: Matching nylon waterproof connectors + silicone sealant kits are available separately. Cut, plug in, reseal with provided glue in <5 minutes, and retain full IP65 rating
• Mounting flexibility:
  • Indoor: Pre-applied 3M VHB double-sided tape on FPCB backside for peel-and-stick install
  • Outdoor: Compatible with standard aluminum extrusion channels (sold separately) for added protection and heatsinking
• 20mm minimum bend radius: Follows curved building outlines, round signage, column wraps, and irregular landscape features without kinking the FPCB or jacket

6. IP65 Protection Rating (Installation Note)

• IP65 certification: Dust-tight, resistant to low-pressure water jets (light rain, sprinkler overspray, outdoor humidity) — suitable for covered patios, sign boxes, and walkway outlines. Not submersible — for immersion use, upgrade to our IP68 silicone series.
• Critical install requirement: All cut points, connector joints, and strip terminations MUST be sealed with the provided silicone glue during installation to maintain IP65 rating. Our accessory kits include pre-measured glue tubes and step-by-step sealing instructions to avoid this common failure point.

Typical Applications (SMD2835 PVC Series)

• Chain convenience store / café / milk tea shop storefront outlines
• Pedestrian street canopy guidance lighting
• Shopping mall interior dropped-ceiling linear accents
• Lightbox signage backlighting (even glow behind acrylic faces)
• Municipal park walkway edge marking (covered sections)

Vasten Quality Backing (Same Bar Across All Tiers)

• 100% FPCB/LED incoming batch inspection
• 48–72hr mandatory burn-in per production batch to catch early-life failures
• 2-year pro-rata warranty
• CE / RoHS / EMC certified for global customs clearance
• Project pedigree: Same QC standards used for Disneyland, Happy Valley, and British royal wedding installs — your rollout gets the same reliability at a lower unit cost.
